產品應用：

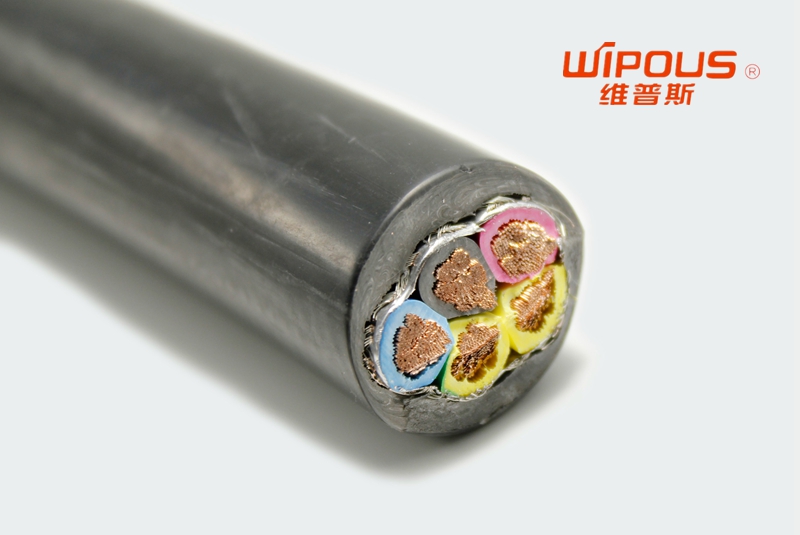

喬浦TS-D-HP適合用于重型工業環境中。用于行車起重機，重型運輸機械，集裝箱吊機等卷筒機中收放使用。可在室外露天或室內干燥潮濕的環境中使用。該電纜采用特制PUR護套材質，PUR外護套使此款電纜適用于極其苛刻的工業環境和有腐蝕冷卻劑和潤滑油場合，具有極好的耐油性，抗磨損性能，抗微生物，抗水解，抗紫外線，防潮，保護電纜不受機械應力的損害。
| 型號 | 芯線根數+導體截面積 | 電纜近似外徑 (mm Max.) |
電纜近似重量 (kg / km) |
近似最大拉力 (N) |
| TS-D-HP-1.5-3C | 3G1.5 | 13.9 | 223.0 | 2000 |
| TS-D-HP-1.5-4C | 4G1.5 | 15.0 | 260.0 | 2000 |
| TS-D-HP-1.5-5C | 5G1.5 | 15.9 | 295.0 | 2000 |
| TS-D-HP-1.5-7C | 7G1.5 | 16.9 | 365.0 | 2500 |
| TS-D-HP-1.5-12C | 12G1.5 | 24.0 | 570.0 | 2500 |
| TS-D-HP-1.5-16C | 16G1.5 | 24.8 | 651.0 | 2500 |
| TS-D-HP-1.5-18C | 18G1.5 | 25.9 | 698.0 | 3000 |
| TS-D-HP-1.5-24C | 24G1.5 | 31.0 | 1045.0 | 3000 |
| TS-D-HP-1.5-30C | 30G1.5 | 32.0 | 1240.0 | 3000 |
| TS-D-HP-2.5-3C | 3G2.5 | 16.0 | 285.0 | 2500 |
| TS-D-HP-2.5-4C | 4G2.5 | 17.3 | 390.0 | 2500 |
| TS-D-HP-2.5-5C | 5G2.5 | 18.7 | 435.0 | 3000 |
| TS-D-HP-2.5-7C | 7G2.5 | 20.0 | 539.0 | 3000 |
| TS-D-HP-2.5-12C | 12G2.5 | 25.0 | 846.0 | 3000 |
| TS-D-HP-2.5-18C | 18G2.5 | 28.0 | 1105.0 | 3500 |
| TS-D-HP-2.5-24C | 24G2.5 | 33.0 | 1483.0 | 3500 |
| TS-D-HP-2.5-30C | 30G2.5 | 35.6 | 1720.0 | 3500 |
| TS-D-HP-4-4C | 4G4 | 19.0 | 505.0 | 5000 |
| TS-D-HP-6-4C | 4G6 | 22.0 | 639.0 | 5000 |
| TS-D-HP-10-4C | 4G10 | 24.0 | 953.0 | 5000 |
| TS-D-HP-16-4C | 4G16 | 29.0 | 1290.0 | 5000 |
| TS-D-HP-25-4C | 4G25 | 38.9 | 1858.0 | 5000 |
| TS-D-HP-35-4C | 4G35 | 39.0 | 2450.0 | 5000 |
| TS-D-HP-50-4C | 4G50 | 45.0 | 3412.0 | 7500 |
| TS-D-HP-70-4C | 4G70 | 51.5 | 4439.0 | 7500 |
| TS-D-HP-95-4C | 4G95 | 58.5 | 6085.0 | 7500 |
| TS-D-HP-120-4C | 4G120 | 64.0 | 7400.0 | 7500 |
